Market target:
.Indoor and outdoor linear wall washing lighting, indoor, outdoor, semi-outdoor lighting, etc.

Usage scenario:
.Indoor and outdoor lighting include villa,historical building group exterior wall lighting,it can vertical bend,the minimum bending diameter is 200 mm.




SPECIFICATION



LED TYPE	Size of Section	Standard Length	LED QTY	Voltage (V)	Current (A)	Power (W)	Working Temperature	Protection Technology	Protection Technology
3030/3535	41.5mm	1m	24led/m	24V	1A	24W	-25+60 ºC	IP65	25x27

Light color can be selected

Practical Scenario
Light Output Diagram

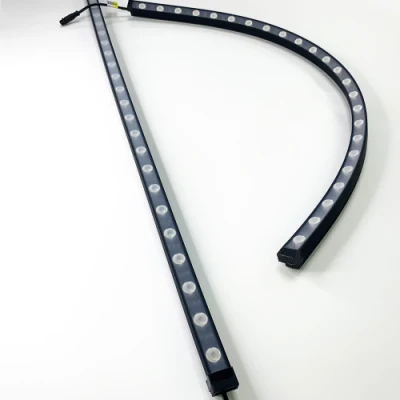

Bending Mode

1.The luminous surface faces outward and curves inward. The inner diameterof the bend cannot be less than 40CM





2.The uminous surface faces inward and bends inward. The inner diameter of the bend cannot be less than 40CM



3.Light up, side curved. Theinner diameter of the bendshould not be less than 30CM



4.Twist, twist in the middle.The spacing can be less than 50CM



INSTALLATION

-Straight keel mounting method

-Straight keel mounting method

-Straight cable buckle installation mode
Notice:
Installation instructions:
1. The light belt is 24V DMX512 point control light belt, 1 meter 24 lights, 3535RGBW, 6 lights are 1 group, 1 meter is
4 or 8 pixels, the maximum power is 24W;
2. A 24V, 400W power supply can drive about 14m lamp belt

Photoelectric Parameter

Specifications	Drive Type	Linear Order	Voltage (V)	Power	Luminous Flux	Lm/W	CRI	CCT	Customizable Length
3030	/	Red :+/ Black :-	24V	24W	1349Lm	57.8Lm/w	Ra:90	2700K±100	250mm End plug Length 20mm
3030	/	Red :+/ Black :-	24V	24W	1453Lm	61Lm/w	Ra:90	3000K±100
3030	/	Red :+/ Black :-	24V	24W	1621Lm	66Lm/w	Ra:90	4000K±100
3030	/	Red :+/ Black :-	24V	24W	1800Lm	75Lm/w	Ra:90	5000K±200
3030	DMX512 QUCS512H4 Tier4	Red line :+ White line :PI Green line :A Blue line :B Black line : GND	24V	24W	1944Lm	55Lm/w	Ra:90	2700-6500K±200
3030			24V	24W	750Lm	30Lm/w	/	R:620 G:530 B:460
3535			24V	24W	880Lm	36Lm/w	Ra:80	R:620 G:530 B:460 W:2700~6500K



Luminance Distribution

Packing with Cartoon



1. FedEx/DHL/UPS/TNT for  Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customer specified freight forwarding mode of transport



Since 2008 Armor lighting step into the led lighting industry and focus on shelf and retail display lighting area .
Armor very experienced and advantageous in products customizing and considering more for our customers.

Armor factory is certified by IS09001 2008 and ISO/TS16949 2009.
Armor have a strong team of R&D and sales service ,and more than 200 skilled shop-workers. The sales revenue of 2018 exceeded 25million US dollars.Equipped with advanced manufacturing facilities.
Armor devotes much attention to internal management and implements 6S management in order to improve the internal operation and quality management system. Armor Lighting dedicates our-self to be a reliable supplier and partner in LED lighting industry.

Armor has achieved many international certificates, including CE, ROHS, ERP, FCC, UL and PSE etc, to satisfy customers needs from different countries and regions.

Q1: What is your minimum order quantity?A:Usually MOQ is 50m, but we also accept small order for trail.

Q2:Is a free sample order available?
A: Of course, you can check our quality before ordering.If you have any requirements, please contact us.

Q3:How long of the lead time?
A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days.

Q4:Can LED strip be customized?
A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM.

Q5:What's your warranty?
A:We have 3 years and 5 years warranty
