Basic Info.
Model NO.
AL-X40
Illumination Time
12h
Cell Type
LiFePO4 Lithium Battery
Charging Time (H)
6
Usage
Garden, Street, Courtyard, Pathway, Yard, Parking Lot
IP Rating
IP65
Certification
CE, RoHS, Ies, IEC
Voltage
12/24V
With Light Source
With Light Source
LED Lamp
12V40W Bridgelux with High Brightness
Solar Panel
18V50W Mono Solar Panel with High Efficiency
Battery
12.8V24ah LiFePO4 Lithium Battery
Product Size
930*320*135mm
Package Size
950*360*220mm
N.W
8.7 Kg/Set
G.W
10.2 Kg/CTN
Install Height
6-7m
Space Btw Lights
18-20
Warranty
5 Years
Transport Package
1 Sets/Carton
Specification
Aluminum Alloy
Trademark
Alishine
Origin
Shenzhen, China
HS Code
9405409000
Production Capacity
10000 Sets/Month
Product Description

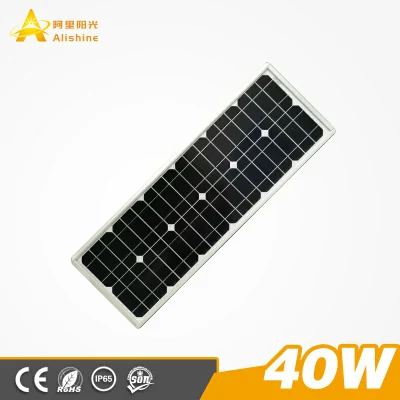

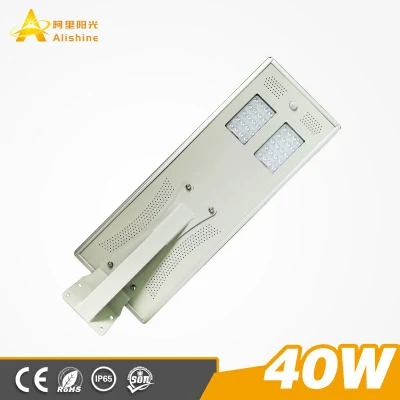

40W All in One Solar Light Fixture with Light Source Module with Adjustable Angle
BRIRF
Our integrated All-in-one 100% solar energy powered Solar Street LED Light which integrates the green-energy parts: Mono solar panel with high efficiency, Bridgelux/ Epistar LED chips, LiFePO4 (lithium iron phosphate) battery, intelligent controller system, PIR Motion Sensor/ Microwave Sensor, etc.Into one aluminum alloy housing.Long life-span, high-luminance, energy saving and maintenance free.Very easy to install and no cable needed.This lamp is brighter compared with normal sodium light, 1W led chip brightness as 5W of normal sodium light, and at the same time, it's convenient for transportation and high safety.
Main Features of 40W All-In-One Integrated Solar LED Garden Street Light (AL-X40):
1.LED light, solar panel, lithium battery and controller,all in one compact design.
2.No wiring,100% solar powered ,easy to install and ship.
3.Built-in infrared sensor,can adjust the light output automatically.
4.Rust-proof, dustproof and waterproof.
5.2 years warranty.
Application of 40W All-In-One Integrated Solar LED Garden Street Light (AL-X40):
street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting;boat dock lighting;
sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.
1. About 13 years specializing in solar lighting system.
2. Complete supplying system with full range of integrated solar street lights,all in one solar led street/garden light,solar yard/moon/apple/peach,etc.
3. Strict process and quality control.
4. Good raw materials used in production.
5. Strong design and production capability.
1. Reply your enquiry in 24 working hours.
2. Well-trained and passional sales & after- sale services,we can do everything to meet your needs.
3. Customized design is available.
4. Shipping port: Shenzhen,China mainland.
5. SAMPLES are prepared.Discouts are offered based on order quantities.
6. MOQ: 1pcs
BRIRF
Our integrated All-in-one 100% solar energy powered Solar Street LED Light which integrates the green-energy parts: Mono solar panel with high efficiency, Bridgelux/ Epistar LED chips, LiFePO4 (lithium iron phosphate) battery, intelligent controller system, PIR Motion Sensor/ Microwave Sensor, etc.Into one aluminum alloy housing.Long life-span, high-luminance, energy saving and maintenance free.Very easy to install and no cable needed.This lamp is brighter compared with normal sodium light, 1W led chip brightness as 5W of normal sodium light, and at the same time, it's convenient for transportation and high safety.
Main Features of 40W All-In-One Integrated Solar LED Garden Street Light (AL-X40):
1.LED light, solar panel, lithium battery and controller,all in one compact design.
2.No wiring,100% solar powered ,easy to install and ship.
3.Built-in infrared sensor,can adjust the light output automatically.
4.Rust-proof, dustproof and waterproof.
5.2 years warranty.
| Model | AL-X40(With Sensor) | CRI | >70Ra | |||
| Solar panel Max power | 18V50W (highefficiency monocrtystalline silicon) | Sensor distance | 8-10m | |||
| Solar panel Life time | 25 years | Lamps material of main | aluminium alloy | |||
| Battery Type | 12.8V 24Ah LiFePO4 Lithium battery | Certificate | CE / ROHS / IP65 | |||
| LED Max power | 12V 30W | Warranty period | 5 years | |||
| Led chip brand | Bridgelux high power LED | Mounting height(m) | 6-7m | |||
| Lumen (LM) | 110-120lm/w | Space between light(m) | 15-18m | |||
| LED Life time | 50000hours | Lighting Time | 3-5 days/ 12 hours per day | |||
| Lighting Viewing Angle | 65°x 120° | N.W | 8.7KG | |||
| Charge time(by sun) | 6-7 hours (with enough sunlight) | Unit size | 930*320*135mm | |||
| Working TEMP( ºC ) | -25~+65ºC | carton size | 950*360*220mm | |||
| Charge / Storage | 0 - 45ºC | Q'ty/ctn | 1set/ctn | |||
| CCT (k) | 6500k-7000k | GW.for carton | 10.2KG | |||
| 20GP container | 400pcs | 40GP container | 800pcs | |||
Application of 40W All-In-One Integrated Solar LED Garden Street Light (AL-X40):
street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting;boat dock lighting;
sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.
Shenzhen Alishine Energy Technology Co., Ltd was Established in 2016, in one group with Shangqi company established in 2004, our factory is located in ShenZhen,China,with convenient transportation access, Covering an area of 4000 square meters, we now have over 100 employees, our company own professional R&D team and sales team,
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee all customer satisfaction.
Our main products are integrated solar street light, solar garden light, all in one solar street light, solar yard/apple/peach light,semi-separate solar street light, etc,
All of our solar lights have approved CE ROHS IP65 LVD IEC EMC and IES Certificates .
We are looking forward to forming successful business relationships with new clients around the world in the near future.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee all customer satisfaction.
Our main products are integrated solar street light, solar garden light, all in one solar street light, solar yard/apple/peach light,semi-separate solar street light, etc,
All of our solar lights have approved CE ROHS IP65 LVD IEC EMC and IES Certificates .
We are looking forward to forming successful business relationships with new clients around the world in the near future.
1. About 13 years specializing in solar lighting system.
2. Complete supplying system with full range of integrated solar street lights,all in one solar led street/garden light,solar yard/moon/apple/peach,etc.
3. Strict process and quality control.
4. Good raw materials used in production.
5. Strong design and production capability.
1. Reply your enquiry in 24 working hours.
2. Well-trained and passional sales & after- sale services,we can do everything to meet your needs.
3. Customized design is available.
4. Shipping port: Shenzhen,China mainland.
5. SAMPLES are prepared.Discouts are offered based on order quantities.
6. MOQ: 1pcs
