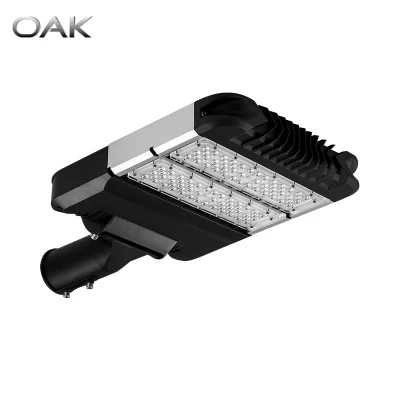

5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights

Power Supply: AC
Color Temperature: 1,700K-10,000K
Lamp Body Material: Aluminum
Power: 50W, 100W, 150W, 200W, 250W, 300W
Application: Square, Highway, Garden, Parking Lot, Crossroad, Tunnel, Airports, etc.
IP Rating: IP65

Products Details

  • Overview
  • Product Description
  • Product Parameters
  • Project References
  • About Us
  • FAQ
Overview

Basic Info.

Model NO.
OAK-ST-VF02
Certification
CE, C-tick, EMC, ETL, LVD, RoHS, SAA, SASO, Pvoc, Coc, etc.
Input Voltage
100-305V AC
With Light Source
With Light Source
LED Chips Brand
Bridgelux
Lamp Wattage
50W, 100W, 150W, 200W, 250W, 300W
LED Source
Bridgelux 3030
Luminous Efficiency
160lm/W
Working Voltage
100-305V AC
Beam Angle
140*70 Degree
Housing Material
Die-Casting Aluminum
CCT
1700K-10,000K
IP Rate
IP65 Waterproof
CRI
>70ra
PF
>0.9
Color
Black
Lifetime
>50,000hrs
Working Temperature
-40c~+50c
Dimming Options
Photocell, Motion Sensor, Dali/DMX Dimming
Warranty
5 Years
Transport Package
Cardboard Box or Wooden Case
Specification
1pc/box or 1pc/carton
Trademark
OAK LED
Origin
China
HS Code
9405429000
Production Capacity
50000 PCS/Year

Product Description



Product Description

5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights

1. Bright LED lamp beads: The whole LED Street Lights use high brightness Bridgelux 3030 LED beads to achieve high uniform illumination, high color rendering and long service life. The LED beads' luminous efficiency up to 210lm/w, and the whole lamp's luminous efficiency reaching more than 160lm/w.

2. Die-cast aluminum housing: The aluminum material manufactured with integrated lamp body stripes achieve faster heat dissipation. The surface polishing and modern anti-corrosion UV spraying process prevent the lamps from oxidation and rust, as well as become more durable, suitable for different indoor and outdoor lighting engineering.

3. Convection heat dissipation design: Using excellent convection heat dissipation design to conduct the heat of LED beads, increase wide exposure range, accelerate heat dissipation and extend long service life.

4. Smart remote control: Providing a variety of intelligent remote control mode such as photocell, PIR, motion sensor for option.

5. IP65 Waterproof and lightning protection: The accessories of LED street lights are made of waterproof materials, passing IP65 professional test and meeting the needs of outdoor use.

6. Multiple installation options: OAK LED Module Street Lights are suitable for a variety of installation sites such as highways, main roadways, parking lots, outdoor courtyards, porches, etc.

7. Adjustable installation filling diameter 60mm: International standard street light diameter 60mm, suitable for maintenance of different light pole calibers.

8. OAK LED Module Street Light is an perfect replacement of traditional HID, Halogen, Metal Halide Lamps in outdoor public road lighting projects.

9. Lifespan over 50,000hrs, 5 years warranty.



5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights

5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights

5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights
5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights




Product Parameters



Supporting to offer 50W/100W/150W/200W/250W/300W LED Street Lights for different outdoor public roadway lighting engineering.



High Brightness OAK LED Street Lights VF Series
Model No. OAK-ST50-VF02 OAK-ST100-VF02 OAK-ST150-VF02 OAK-ST200-VF02 OAK-ST250-VF02 OAK-ST300-VF02
Lamp Power 50W 100W 150W 200W 250W 300W
LED Type/LEDs QTY 3030 SMD LEDs/64pcs 3030 SMD LEDs/128pcs 3030 SMD LEDs/192pcs 3030 SMD LEDs/256pcs 3030 SMD LEDs/320pcs 3030 SMD LEDs/384pcs
Luminous Flux 8,000lm 16,000lm 24,000lm 32,000lm 40,000lm 48,000lm
Effective Coverage Area Pole Height: 5-6m

Coverage area: 45-60m2

Pole Height: 7-9m

Coverage area: 70-90m2

Pole Height: 11-12m

Coverage area: 100-130m2

Pole Height: 13-15m

Coverage area: 150-180m2

Pole Height: 13-15m

Coverage area: 150-200m2

Pole Height: 13-15m

Coverage area: 150-250m2

LED Source 210lm/w (3030 SMD LEDs)
Luminous Efficiency 160lm/w  (the whole lamp)
Power Supply Waterproof Meanwell driver
Beam Angle 140×70°
Color Temperature 1,700K-10,000K (for option)
Housing Material Die-Cast Aluminum+PC lens
Lamp Color Black
Power Factor ≥90%
CRI ≥Ra70
Waterproof Rate IP65
Dimming Option Available to provide photocell motion sensor, dimming function
Working Temperature -40ºC~+50ºC
Lifetime ≥50,000hrs
Warranty 5 Years
OAK LED can provide the customized lighting solution and recommend suitable LED Street Lights for your projects


5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights




Project References


OAK LED Street Lights are mainly used for highways, roadways, crossroads, toll statations, parking lots, public walkways, driveways, etc.

If your current project need any lighting adivde, OAK LED can provide the customized lighting plan for you basing on your project information.

5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights




About Us



OAK LED Co. LTD, a factory specialized in manufacturing high quality LED lights and offering the best lighting solution for different sports lighting, airports/seaports lighting, warehouse/factory lighting, highways/crossroads lighting, square/tower facade lighting, etc.


Products scope involves LED Flood Light, LED Sports Lights, LED Street Lights, LED High Bay Lights, LED Studio Lights, All-in-one Solar Street Lights, etc.

5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights
5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights
5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights5000K Public Security Lighting Outdoor 100W LED Road Parking Lot Street Lights



FAQ

Q1: Are you the manufacturer or trading company?

A1: We are manufacturer. Welcome to inspect our factory at anytime.

Q2: Can you provide customized services?

A2: Yes, we can provide one-stop solutons, such as OEM/ODM service, lighting solution, print customized logo, change color, etc.

If any need, please inform us formally before production.

Q3: What is your terms of payment?

A3: In general, we accept T/T and PayPal. For regular orders, 50%-60% deposit before production, clearing balance payment before shipment.

Q4: What about the lead time?

A4: For regular orders, 5-7 working days for sample, 10-15 working days for bulk order.

Q5: Do you offer guarantee for the products?

A5: Yes, we will provide professional after-sales service and 5 years warranty.

If the lamps is not damaged by human, we can send free spares or full lighting fixture for replacement during the period of 5 years warranty.

WELCOME TO CONSULT WITH OAK LED IF YOU HAVE ANY PURCHASING NEED OR TECHNICAL PROBLEMS.
