Product Description

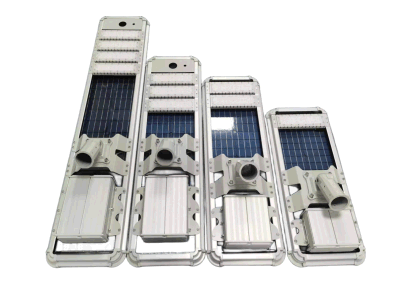

Integrated Solar LED Street Light
The power range of our integrated solar LED street lights can vary depending on the model and specifications. The typical real power ranges from 10 watts to 100 watts due to size limitations. However, at Yangzhou Forever Lighting Co., Ltd., we have developed the Prime Series integrated solar street light with a flexible and spacious battery box design, allowing us to extend the maximum power to 120 watts.
When selecting the appropriate power range for an all-in-one street light, we take into consideration your lighting requirements and the area coverage you need. Our integrated solar LED street lights are designed to provide efficient and reliable lighting solutions for various outdoor applications.
With our integrated solar LED street lights, you can enjoy the following features and benefits:
- High-quality solar panels that efficiently convert sunlight into electricity
- Long-lasting lithium-ion batteries for reliable power storage
- Flexible and big battery box design for increased power capacity
- Customizable power range options to meet your specific lighting needs
- Easy installation and maintenance-free operation
- Automatic dusk-to-dawn operation for hassle-free lighting control
- Environmentally friendly and energy-saving solution
- Durable construction to withstand harsh weather conditions
- Enhanced safety with built-in overcharge and over-discharge protection
At Yangzhou Forever Lighting Co., Ltd., we are committed to providing high-quality integrated solar LED street lights that deliver reliable and sustainable lighting solutions. Choose our Prime Series integrated solar street lights for efficient and cost-effective outdoor lighting.
| Solar Panel | Solar panel(mono crystalline silicon) 18V | ||||||
| 60W | 60W | 70W | 80W | 110W | 120W | 160W | |
| LED power | 30W | 40W | 50W | 60W | 80W | 100W | 120W |
| Battery Capacity | LifePO4 battery | ||||||
| 12.8V 24AH | 12.8V 24AH | 12.8V 30AH | 12.8V 30AH | 25.6V 24AH | 25.6V 36AH | 25.6V48AH | |
| Chip Lumen | 130~150 lm/w | ||||||
| MPPT Controller Current | 5A | 10A | 10A | 10A | 10A | 15A | 15A |
| Led Chips Brand | BRIDGELUX/CREE OR CUSTOMIZED | ||||||
| Led Life Time | 80000hours | ||||||
| Viewing Angle | 70*120° | ||||||
| Work Time | 6-8hours per day,2-3 days back up | ||||||
| Working Temperature | -30ºC~+70ºC | ||||||
| Color Temperature | 3000-6500k | ||||||
| Mounting Height | 4-5m | 6-7m | 7-8m | 7-9m | 8-10m | 8-10m | 8-10m |
| Space between Light | 10-15m | 15-20m | 20-25m | 20-25m | 25-30m | 30-35m | 30-35m |
| Lamps Material of main body | aluminum alloy | ||||||
| Certificates | CE / ROHS / IP65 | ||||||
| Product Warranty | 3 years | ||||||
| G.Weight | 15.5kg | 15.5kg | 17.5kg | 20.5kg | 31.5kg | 32.5kg | 38.5kg |
| PIR Sensor | YES | ||||||
