Basic Info.
Model NO.
APT03
CRI
Ra 80 / Ra 90
Type
Recessed
Diffuser
PMMA
Lead Time
8 Working Days
Warranty
3years
Transport Package
Paper Carton
Specification
1M, 2M, 3M optional. customized length accept
Trademark
Easing Home
Origin
P. R. China
HS Code
9405409000
Production Capacity
1, 000PCS Per Day
Product Description

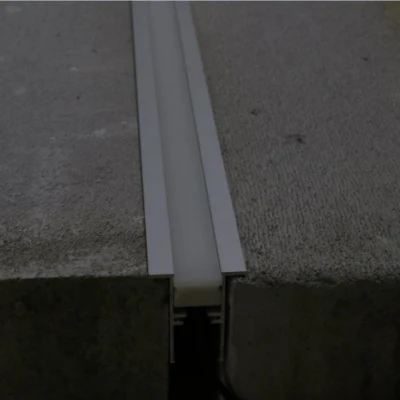

APT03 160lm/W Outdoor ip67 Whatproof Led aluminum Profile 3tons Weight Pressure for Car Parking
Description:
APT03-AL01 LED linear light, simple and consise look. 10mm thickness PMMA diffuser gives perfect dots-free light.PMMA extrusion ONE body profile sealed by injection machine, which ensures perfcet waterproof function and almost no darkness on the end. even jointing continous pcs together, there is no darkness betwee the joint point. high quaity extruded aluminum housing and die-cast aluminum end caps.
Structure:
Technical Data:
| Part Number: | APT03-AL01 | Length: | 0.5M, 1M, 2M. 3M cutomized length accepted | Advantage: 1)linear light design , homogeneous and dots free 2)UV resistance 3)Maximum stand weight: 30kN |
| Type: | Recessed | Accessory: | End cap, Aluminum plate | |
| Housing material: | PMMA + high-quality Aluminum alloy | Connection | Aluminum channel for connection | |
| Diffuser material: | PMMA ( 10mm thickness) | IP Rate: | IP67 waterproof | |
| Housing color: | Siver, white, black optional | Warranty: | 3years | |
| Light source | SMD | CRI: | Ra 80, Ra 90 Optional | |
| CCT: | Warm white, White, Red,Green,Blue, Yellow, Pink, Purple, RGB, RGBW, CCT, RGB+CCT | Input Voltage: | DC 12V / DC 24V | |
| Dimming type: | Power: | 25W Max | ||
| Cable method: | bottom, end or side cable out | Lead time: | 8 working days | |
LUMINAIRE DATA
| Item No | Power (W) | Light type | Flux(lm) | C.T. | Input | CRI | Length |
| APT03-AL01 -18W | 18W | 3528 SMD | 1000-1280lm | 2500K-3000K, 4000-4500K, 6000-6500K Red, Blue, Green, Yellow ect | DC 12V / DC 24V | Ra 80 / Ra 90 | 1000mm |
| APT03-AL01 -25W | 25W | 2835SMD | 1850-2080lm | 2500K-3000K, 4000-4500K, 6000-6500K | DC 12V / DC 24V | Ra 80 / Ra 90 | 1000mm |
Product Details:
About us:
Easing Home Technology Co. Ltd established in 2008 and own 4,000 meters factory, specializing in producing and manufacturing aluminum profile, LED strip for LED lighting.
FAQ
Q1:Are you manufacturer?
A: Yes, We are manufacture since from 2008, is a well-known company with good reputation in China.
Q2:If I need sample, could you support?
A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.
Q3:What's your MOQ?
A: 1 metric ton for each model.
Q4:How do you charge the mold fee?
A: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.
Q5:What is the difference between theoretical weight and actual weight?
A: Actual weight is the actual weight including packaging. Theoretical weight is identified according to the drawing, calculated by of the weight of each meter multiplied by the length of profile.
Q6:How can you ensure high quality?
A: 1) We have our own material production workshop and die factory for 10 years.
2) 300 workers, and workers should be well trained before go to work.
3) 100% QC on line and final inspection, no any defective products can be out from our factory.
4) We have a lot of certificates to ensure our quality, such as ISO9001:2015, ISO14001:2015,SGS certificate, etc.
Q7:What's your payment term?
A: 30% T/T deposit + 70% T/T before loading the container .
Application: parking lot, park area ect, to show ideal on ground ect,
