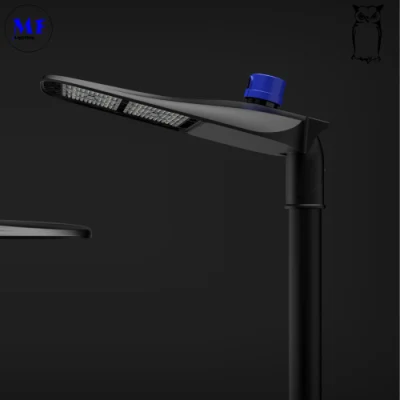

Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light

Power Supply: AC
Color Temperature: 4000K-6500K
Lamp Body Material: Die-Casting Aluminum
Power: 20W-300W
Application: Square, Highway, Garden, Parking Lot
IP Rating: IP66

Products Details

  • Overview
  • Product Description
  • Installation Instructions
  • Dimensions
  • Photometric
  • Production Line
  • Applications
  • Company Profile
  • FAQ
Overview

Basic Info.

Certification
CB, DLC, CE, ETL, RoHS, SAA, TUV, Ence
Input Voltage
AC100~240V 50/60Hz
LED Chips Brand
Lu-Miled 3030
CRI
70+
Lifespan
60,000
Lumens
140lm/W
Beam Angle
160°/85° 160°/95°
Driver
Sosen
Operating Temperature
-30°c to+60°c
Storage Temperature
-30°c to+50°c
Frequency
47~63Hz
Trademark
MF
Origin
China
HS Code
9405429000
Production Capacity
10, 000PCS/Months

Product Description

20W-300W IP66 IK08 4000-6500K AC100-240V Owl-2 Family LED Street Light for Highway/Street/Roadside
Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light


Product Description

Quick Details

  1. IP66 20W-300W LED Street Light
  2. Input: AC100-240V 50-60Hz
  3. Beam Angle: 160°/85°, 160°/95°
  4. CCT: 4000K-6500K
  5. Warranty: 5 years
  6. Lifespan: >=60,000Hrs


Parameters

Power Consumption 20W 30W 40W 50W 60W 75W
Instant Output Lumen 2800 lm 4200 lm 5600 lm 7000 lm 8400 lm 10500 lm
LED Quantity 40 pcs 64 pcs 80 pcs 96 pcs 96 pcs 112 pcs
Power Consumption 100W 120W 150W 180W 200W 240W
Instant Output Lumen 14000 lm 16800 lm 21000 lm 25200 lm 28000 lm 33600 lm
LED Quantity 114 pcs 192 pcs 192 pcs 224 pcs 288 pcs 336 pcs
Types Typical System 140 lm/w(after PC Lens)
LED Chip Lu-miled 3030



Power Consumption 20W 30W 40W 50W 60W 75W
Instant Output Lumen 3000 lm 4500 lm 5800 lm 7000 lm 9300 lm 11250 lm
LED Quantity 96 pcs 96 pcs 96 pcs 96 pcs 160 pcs 160 pcs
Typical System Efficiency 150 lm/w 145 lm/w 140 lm/w 155 lm/w 150 lm/w
After PC Lens
Power Consumption 100W 120W 150W 180W 200W 240W
Instant Output Lumen 14500 lm 18600 lm 22500 lm 26100 lm 31000 lm 36000 lm
LED Quantity 160 pcs 320 pcs 320 pcs 320 pcs 480 pcs 480 pcs
Typical System Efficiency 145 lm/w 155 lm/w 150 lm/w 145 lm/w 155 lm/w 150 lm/w
After PC Lens
LED Chip Lu-miled 3030



Power Consumption 20W 30W 40W 50W 60W 75W
Instant Output Lumen / / / / 8700 lm 10500 lm
LED Quantity / / / / 160 pcs 160 pcs
Power Consumption 100W 120W 150W 180W 200W 240W
Instant Output Lumen 14000 lm 17400 lm 21750 lm 25200 lm 29000 lm 33600 lm
LED Quantity 160 pcs 320 pcs 320 pcs 320 pcs 448 pcs 448 pcs
Typical System Efficiency 140 lm/w 145 lm/w 140 lm/w 145 lm/w 140 lm/w
After PC Lens + Tempered Glass
LED Chip Lu-miled 3030



Color WW NW CW CW
CCT 3000±300K 4000±300K 5000±300K 5700±300K
Typical CRI >=70
Beam Angle 160°/85°, 160°/95°
Material Alloy Aluminum, Optical PC, Tempered Glass, Stainless Steel
Operating Temperature -30°c to+60°c
Storage Temperature -30°c to+50°c
Frequency 47 63HZ
Input Voltage 100-240V AC


Description

Ming Feng Lighting presents the IP66 LED Street Light, a high-quality lighting solution designed for efficient street and roadway illumination. With its impressive features and long lifespan, it offers reliable performance and durability.

Operating on AC100-240V at 50-60Hz, this street light is compatible with various power systems worldwide. Its 160°/85°, 160°/95° beam angle ensures uniform lighting distribution, covering a significant area and enhancing visibility.

The CCT ranges from 4000K to 6500K, allowing you to select the desired color temperature for your lighting needs. With a power factor (PF) greater than 0.95, it maximizes energy efficiency and reduces electricity costs.

Boasting a lifespan of over 60,000 hours, this LED street light ensures long-lasting operation and minimizes maintenance expenses. Its IP66 rating guarantees resistance against dust and water, making it suitable for outdoor environments.

In summary, Ming Feng Lighting's IP66 LED Street Light combines efficiency, durability, and versatility to provide outstanding illumination for streets and roadways. With its wide voltage range, adjustable color temperature, high power factor, and long lifespan, it is a reliable and energy-efficient lighting solution. Choose Ming Feng Lighting for enhanced visibility, reduced energy consumption, and low maintenance requirements.

Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light
Key Features
Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light

Installation Instructions

Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light
Wiring:
Cut off the power input (turn the switch gear to "OFF"). Connect the core wires of the power cable to the input wire of lamp correspondingly (lamp input wire: brown to the power grid L (Live line), blue to the power grid N (Neutral line), yellow-green to the power grid G (ground wire) , and wrap with fireproof insulating tape according to safety regula-tions).

Installation steps:
1.Screw the photocontrol onto the base (optional)
2.Fasten the hoop to the lamp body with bolts
3.Connect the cable according to the wiring diagram
4.Loosen the fastening screws, align the hoop mouth with the light pole in the direction of the arrow shown in the figure, and slowly slide the light pole to the bottom;
5.Refer to the level bubble, rotate the lamp to keep it parallel to the direction of the road, then tighten two fixing screws, and finally tighten two fastening nuts.

Remarks:
Light pole diameter can be 52mm ~ 60mm;
Horizontal or vertical installation available, ± 15 ° elevation and depression angle adjustment;
Hex wrench would be used when installing, and the tightening strength is 18Nm.

Inspection after installation:
1.Firmness, cleanliness; direction, angle.
2.The wire is not exposed and the wire sheath is not damaged.
3.Power-on inspection (air switch and other devices need to be turned to the ON position); the control system need overall adjustment; For lamps with construction errors, they need to be power off and to do re-construction.

Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light








Dimensions

Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street LightCompatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light

Photometric

Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light

Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light





Production Line

Ming Feng Lighting manufactures LED street lights with precision and expertise. The production process begins with the careful selection of high-quality materials. Advanced manufacturing techniques are employed to ensure the efficiency and durability of the lights.

First, the LED chips, known for their energy-saving properties, are meticulously placed on circuit boards. These boards undergo thorough testing to ensure optimal performance.

Next, the assembled components are housed in rugged and weather-resistant casings, designed to withstand the harshest outdoor conditions.

Quality control measures are implemented at every stage of production. Rigorous testing procedures guarantee that each LED street light meets the highest industry standards.

Ming Feng Lighting's commitment to innovation and reliability has positioned them as a leading provider of LED street lights. Their dedication to producing top-quality products ensures long-lasting performance, energy efficiency, and customer satisfaction.


Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light
Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light
Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light
Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light

Applications

Ideal for highways, viaducts, urban streets, overpasses, sidewalks, squares, schools and other outdoor lighting place.
Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street LightCompatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light

Company Profile

Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
Compatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street LightCompatible Design NEMA Control IP66 Waterproof 140lm/W LED Flood Lighting with Photocell Park Garden Courtyard Lamp LED Street Light


FAQ

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5:  Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
