Easy Installation Outdoor Solar LED Street Light Wall Light

After-sales Service: on-Line
Warranty: 3 Years
Light Source: LED Lamp
Lamp Body Material: Aluminum Alloy
Light Type: Solar
Color Temperature: White, Cold White, Warm White

Products Details

  • Overview
  • Product Description
  • Product Parameters
  • Product Features
  • Applications
Overview

Basic Info.

Model NO.
HW-WL
Power
100W, 200W, 300W
Technics
Painted Matte
Illumination Time
12h
Cell Type
LiFePO4 Battery
Charging Time (H)
8
Usage
Garden, Street, Plaza, Parking Lot, Courtyard, Outdoor
IP Rating
IP65
Certification
CE, RoHS
Voltage
3.2V
With Light Source
With Light Source
Solar Panel Voltage
6V
LED Brand
CREE
Applicable Pole Height
3-6 Meters
Lifespan
>50000 Hours
Controller
Pmw
Transport Package
Carton
Specification
Aluminum
Trademark
Hwawin
Origin
China
HS Code
9405410000
Production Capacity
20000 Pieces Per Month

Product Description

Product Description

Easy Installation Outdoor Solar LED Street Light Wall Light

Product Parameters

Model HW-WL100W HW-WL200W HW-WL300W
Power 100W 200W 300W
Solar Panel Power 6V 18W 6V 20W 6V 25W
Solar Panel Size 350*350*17mm 350*450*17mm 530*350*17mm
Battery Capacity 3.2V 15AH 3.2V 15AH 3.2V 20AH
Lamp Size 420*151*40mm
LED Brand CREE
LED Type 5050
LED QTY 64 pcs
Controller PMW
CCT 7500K
CRI Ra>70
Beam Angle 90°
Material Galvanized steel
IP Rating IP65
Working Temp -20ºC ~50ºC/-4ºF~122ºF





Product Features

Compared with the old version, the light source is the most significant improvement of this upgraded version of WT series solar street lights. Because of the light source upgrade. the brightness of the upgraded version is three times that of the old version. To significantly improve the brightness, we have mainly upgraded the light source as follows:

1.Change the 3030 LED chips to 5050 LED Chips. The luminous area of the 5050 LED chips is 50*50mm, and that of the 3030 is 30*30mm. In addition to the increased luminous area, the luminous efficiency of the 5050 LED chips is also higher than that of the 3030. The luminous efficiency of 5050 LED chips is 140-170lm/w.while the 3030 only has 120-150lm/w.

2. The number of LED chips has been increased from 50pcs to 64pcs. We used LED chips with higher luminous area and luminous efficiency and increased the number of LED chips.

3. Use a patented optical lens with better light transmittance. The old version uses lenses commonly used in the market, while the upgraded version optical lenses has stronger light transmittance.

Regarding light sources, we are improving in all aspects and are committed to giving customers a better lighting experience.

Easy Installation Outdoor Solar LED Street Light Wall Light

Easy Installation Outdoor Solar LED Street Light Wall Light
Innovation Structure
The innovative structure of the lamp body does not need to be connected to the lamp head and the arm during installation. The solar panel is directly installed on the fixing screws of the lamp body, and the lamp body is directly installed on the wall, which is simple and convenient. And because the lamp body and the arm have been integrated, there is no need to worry about the connection between the lamp head and the arm being blown off.
Easy Installation Outdoor Solar LED Street Light Wall Light

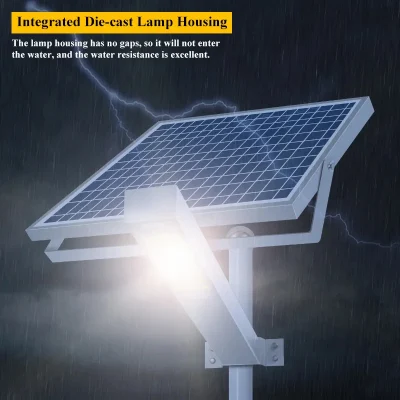

Die-cast in One Piece
The lamp body is die-cast in one piece without any gaps. When installed, the solar panel is above the lamp body, which can absorb sunlight and block rainwater. The combination of the two makes the waterproof ability of this solar street light even higher.
Easy Installation Outdoor Solar LED Street Light Wall Light
CREE LED Chips
The use of CREE LED chips has high light efficiency, low light decay, and long service life, significantly improving the lamp's brightness and prolonging the lamp's service life.

Applications

Easy Installation Outdoor Solar LED Street Light Wall Light
Easy Installation Outdoor Solar LED Street Light Wall Light
