Product Description

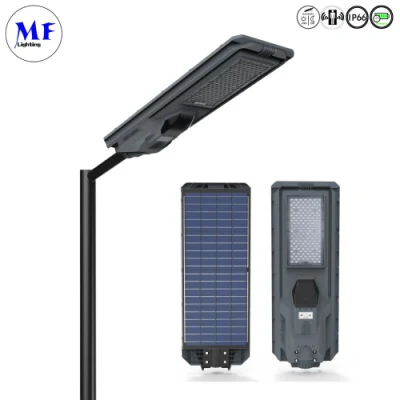

Product Overview
This is our patent product, designed to provide users with high-quality solar streetamp, which has passed CE,FCC,ROHS and some other international certificate.elegant design""electricity/wiring free, easy to install","high charging efficiency"strong endurance" and "outstanding lighting effect" are the main advantages ofthis product. Solar system equipped with large capacity lithium battery, which canabsorb solar energy and convert it into electric energy by solar panel. Energystored in the battery and then supplied to the solar street lamp. Products are widelyused in street,path,residence,lodge,farm,orchard,park,parking lot and other area.

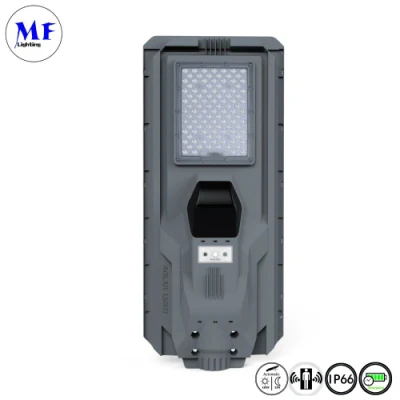

Product design
The outlook of this product is designed by our company's product visual designteam, is our patent product (patent number: 2022307262546). Product designconcept keeps with the "outer space family design element, mixed with theinspiration from " Apollo lll " , coming out with a unique industrial design in themarket. While providing the lighting, also bring a brand-new product visual impactto users and add a unigue decoration to users!
| Model | MF-ASLH800 | MF-ASLH1200 | MF-ASLH800C | MF-ASLH1200C |
| Lamp Body Material | ABS | ABS | ABS | ABS |
| Lens Material | Teijin PC | Teijin PC | Teijin PC | Teijin PC |
| Lamp Size | 700*300*81mm | 820*300*81mm | 700*300*81mm | 820*300*81mm |
| LED Chip | 104 pcs SMD3030 | 154 pcs SMD3030 | 104 pcs SMD3030 | 154 pcs SMD3030 |
| Battery | LiFePO4 24Ah | LiFePO4 36Ah | LiFePO4 24Ah | LiFePO4 36Ah |
| Solar panel | 4 V/28W(574*295.5 mm) | 4V/ 35 W(693*295.5 mm) | 4 V/28W(574*295.5 mm) | 4V/ 35 W(693*295.5 mm) |
| CCT | 6000-6500K | |||
| Charging Time | Effective | |||
| Effective sunshine 4-6 hours | ||||
| Discharge Time | 4-5 rainy & cloudy days | |||
| Discharge Current | 4.8A | 6.5A | 4.8A | 6.5A |
| Radar Sensor | YES | |||
| Product Features | Optical + Remote Control | |||
| IP Rank | IP65 | |||
| Luminous Flux | 2400lm | 3600lm | 2400lm | 3600lm |
| Camera Resolution | N/A | 1440P day and night full-color;400M Pixel | ||
| Camera Lens | N/A | Focal length:4MM;350 degree from horizontal;90 degree from vertical | ||
| Version | N/A | WiFior4G | ||
| Decoding | N/A | H.265 | ||
| TF card | N/A | 16G to 256G for optional | ||
| Platform | N/A | APP or PC | ||
| CCTV Working Mode | N/A | 24 hours working or Induction | ||
The ultra-low power monitoring program independently developed by our company which consumes 60% power less than the normal ones in the market. Maximally reduce the camera demands for solar panels and batteries, which means more competitive price for our solar CCTV lights . Meanwhile, it also provide a good effectduring rainy & cloudy days. 24 hours working & induction mode switch,ensure 365days lighting & monitoring.
2. HD camera
Equipped with 400M Pixel(1080P) HD chip and lens ensure the high definition videoand pictures. Meanwhile,with day and night full-color function, also cause an excellent monitoring effect during night (see Annex 1 for more details).
3. Signal Stability
During the early stage of researching on this product, considering the complicated outdoor conditions,we provide both WIFl & 4G version for optional,which can cover different application area.What's more,with special design on enhanced signal,ensurethe strong signal penetration which never will be dropped. lf signal get disconnected due to the bad network, the camera can be automatically connected after recovering(where the signal is covered, camera can be connected!)
4. Convenient Visual Platform
1).Both APP & PC platform,which can meet the requirements for multi devicemonitoring at the same time.
2).Platform support different language as your wish,which can be set up according tothe language settings of your smart phone.More stable,safety,reliable,convenient
3).350 degree from horizontal:90 degree from vertical,no worry on the installation angle,convenient installation.
5. Various Function
The lamp could be remotely turned ON/OFF through APP,also with the function of multiple people watch online at the same time, monitor motion alert,etc...bring thenewest lOT intelligent technology experience to the customers:such as taking photos.recording,play back,timer on lamps...fully meet the requirements on lamp & camera from end users.( check Annex 2 for more details).
High lumen: brightness increased by 30%
This product adopts LED optical lens design, the lens can effectively gather the lightof the light source to improve the brightness and reduce the light loss.The lightefficiency of the traditional reflective cup is increased by more than 20%. At the sametime, the lens of this product is made of PC (Teiin Brand from Japen) material, and thtransmittance after processing is as high as 91%,lt is much higher than 80% of theglass transmittance; the whole lighting efficiency is increased by 30%, and theirradiation area is increased by more than 25%
Through professional optical design, this product is equipped with an optical lens of150 * 70, and the luminous angle is at the same installation height,30% larger than thetraditional 120 degree irradiation area.
Three Brightness Mode(The remote control has memory function, you can set only once.)
1.AUTO mode. AUTO mode means radar mode for all night. This mode is the brightest and thedischarging time is more than 5 days.
2.Switch to radar mode after constant light mode. The buttons "2+X" "3+X" means switching toradar mode after 2 or 3 hours constant
lighting. The brightness of this mode is 70% of radar modefor all night.
3. Always mode. Always mode means constant lighting for all light. The brightness of this mode is70% of radar mode for all night.
Tips:
1.Pressing the key "AUTO the light will automatically turn on in the dark and turn off tocharge in the day.
2.The remote controller has memory function, you can set according to your preference3.The brightness is 70% of radar mode during in constant lighting mode, 2 hours constantlighting mode, 3 .hours constant lighting mode.
High-efficiency fast charging solution, charging efficiency improved by 50%
The solar controller simulates the MPPT charging scheme, a unique chargingand discharging management system with more efficient charging anddischarging efficiency. For example, the market routinely uses 6V/30Wphotovoltaic panels with a peak charging current of 5A; but our product uses4V/30W photovoltaic panels with a peak charging current of 7.5A. The chargingefficiency is improved by 50%
