Product Description

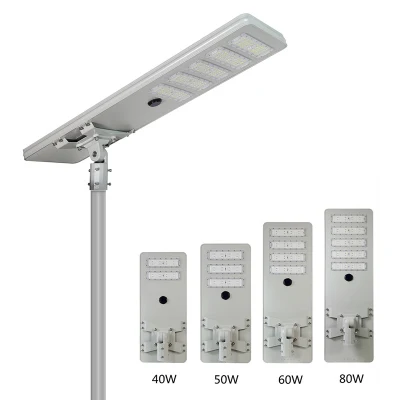

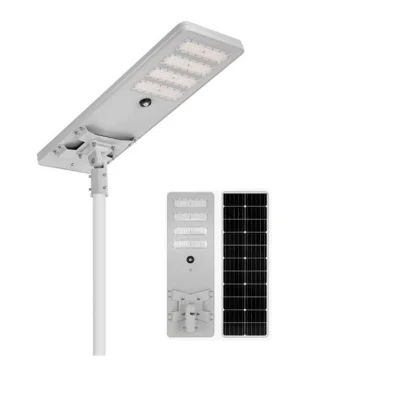

High Lumen 200lm/w Solar Panel and Battery Powered Integrated All in One Solar LED Street Light 40W 60W 80W 100W for Road Highway Lighting
Application
Below our recent solar lighting project based on 18V 120W solar panel and 12.8V 42Ah LiFePo4 battery; lamp pole height: 10m
Features:
2. Strong aluminum lamp frame, waterproof IP65 design, SUS#304 stainless steel screws, never rust.
3. Luminaire efficacy reach 200lm/w by using super brightness SMD 7070 chips. Can completely replace AC street light for energy saving.
4. Can be installed on 3-10m lamp pole, solar panel power can be OEM produced.
5. 12.8V LiFePo4 battery, new A1 type, not recycled, to guarantee quality and long stable performance.
6. Top quality controller, SRNE/Depower/Lumiax controller optional
7. Equipped with 18V monocrystalline solar panel, conversion efficiency is over 22%.
Sunny countries use Mono-crystalline solar panel, better charging.
Not good sunshine countries use Poly-crystalline solar panel, can be charged in rainy days.
Both solar panel lifespan over 25 years.
Can OEM any size according to client solar panel wattage requirements.
| Brand Name | KLOVER LIGHTING | ||||
| Series No. | SSL0115 series all in one solar street light | ||||
| Lamp Size(mm) | 686*351*45 | 839*351*45 | 1081*351*45 | 1231*351*45 | 1631*409*48 |
| Solar Panel (Monocrystalline) | 18V 40W | 18V 50W | 18V 60W | 18V 70W | 18V 120W |
| Battery type (LiFePO4) | 18AH | 12.8V 24AH | 12.8V 30AH | 12.8V 36AH | 12.8V 42AH |
| Material | Aluminum Alloy | ||||
| LED chips | SMD 7070, 12/16pcs per module,Ra>70 | ||||
| CCT | 3000K~6500K | ||||
| Lumen Efficiency | 190-200lm/w | ||||
| Charging time | 6-8 hours | ||||
| Discharging time | 30-36 Hours | ||||
| Installation Height | 4-6m | 5-7m | 6-8m | 7-8m | 8-10m |
| Certificate | CE-EMC, RoHS (CE-LVD not Aplicable) | ||||
| Application | this all in one solar street lights suitable for street, highway, road, path, garden, square or any other outdoor place | ||||
| Warranty | 3 Years | ||||
Strong Spigot adjustable 0-180 degree.
Waterproof IP65 design, good for outdoor use.
Mono-crystalline solar panel, with latest technology, conversion over 22%.
Top quality materials
1. Phi-lips Lumi-leds 3030 with 170lm/w, 4 chips core Bridgelux 3030 with 210-220lm/w to achieve high lumen output.
2. 3 Working mode: Euiqpped with PIR sensor or Microwave sensor, or dimming type(no sensor) optional.
3. New LiFePo4 battery, not recycled poor quality type.
4. Strong adjustable spigot, with aluminum lamp body.
Optical design
T2M/T3M optional
Working mode
Always equipped with PIR sensor or Microwave sensor for energy saving.
when sensor activated, turn to 100% brightness working, normal lighting is 30% brightness.
Detecting distance is 8-10m.
Suggested installation height
Clients feedback
1. Can I have an sample for testing?
Yes, sample available in about one week time.
2. How long time for order production?
It takes about 15-20 days.
3. Do you have any agent abroad?
So far we have an agent in Mexico, others if saying they are our agent, please don't trust them.
4. Are you a manufacturer or trading company?
We are a manufacturer in Zhongshan city, Guangdong province, China.
6. What's your advantages?
Good quality, competitive price and short time of delivery.
