Product Description
Pole Height | Thickness | Lamp | Material | Shape | Advantage |
15m | 5/6/8mm | 100-500w LED Customized | Q235A/Q235B/Q355/SS400/Q460/JR65 | round shape/ polygonal | high quality, special design, reliable lifting system, safe and anti-explosion, anti-collsion |
20m | 5/6/8/10mm | 150-800w LED Customized | Q235A/Q235B/Q355/SS400/Q460/JR65 | round shape/ polygonal | |
25m | 6/8/10/12mm | 300-1000w LED Customized | Q235A/Q235B/Q355/SS400/Q460/JR65 | round shape/ polygonal | |
30m | 8/10/12/14mm | 400-1500w LED Customized | Q235A/Q235B/Q355/SS400/Q460/JR65 | round shape/ polygonal | |
40m | 8/10/12/14/16mm | 500-2000w LED Customized | Q235A/Q235B/Q355/SS400/Q460/JR65 | round shape/ polygonal |
The configuration of high mast light:
1. The shape usually are dodecagon or octagonal conical pole, by high strength steel plate after cutting, bending,automatic welding, the general height is 25m, 30m and 35, the maximum wind resistance design of up to 60 meters / second.
2. In the functional framework, but also to decorative materials mainly to steel, steel pipe, lamp post, lamp plate are hot dip galvanizing.
3. Electric lifting system consists of electric motor, winch, three sets of hot dip galvanized steel wire rope and cable and so on.The inside of the lamp post is mounted with a lifting speed of 3 to 5 meters per minute.
4. The guiding and unloading system is composed of guide wheel and guide arm to ensure that the lamp plate does not move transversely.during the lifting process. When the lamp plate is in place, the lamp plate can be automatically dropped and locked by the hook.

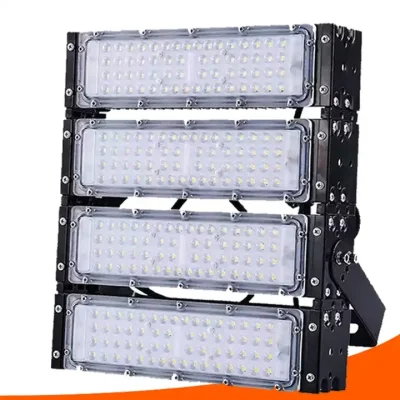

5. lighting electrical system is equipped with 6 to 24 lamps, 400 W, 1000 W, metal halide (white light), light and floodlight.The computer time controller can automatically control the switching time, part lighting or full illumination,
6. lightning protection system: the lamp top is equipped with 1.5 meters long lightning rod,
the underground foundation is equipped with 1 1 meter long grounding wires and is welded with the underground bolt.
Applications
Plaza High Mast Lighting pole Airport High Mast Lighting pole Highway High Mast Lighting pole Storage-yard High Mast Lighting pole Industrial-plant High Mast Lighting pole | Park High Mast Lighting tower Dock High Mast Lighting tower Stadium sport High Mast Lighting tower Overpass High Mast Lighting tower Toll-station High Mast Lighting tower |
