Basic Info.
Product Description
Parameter
Model | PCB width | LED chips | CCT/ Wavelength | LED Qty/ meter | Volt(V) | Power(W) | Luminous Efficiency(Lm/M) | Ra | Power inject ( meter) | Length per roll/meter |
RL-07-2835-60-XX-12-SW | 7mm | 2835 | 3000-12500K | 60 | 12 | 6 | 600 | 75 | 2 | 10 |
RL-06-2835-72-XX-12-SW | 6mm | 2835 | 3000-12500K | 72 | 12 | 7.2 | 720 | 75 | 2 | 10 |
RL-05-2835-120-XX-12-SW | 5mm | 2835 | 3000-12500K | 120 | 12 | 8 | 850 | 75 | 2 | 10 |
RL-05-2835-60-XX-12 | 5mm | 2835 | 3000-12500K | 60 | 12 | 6 | 600 | 80 | 5 | 10 |
RL-05-2835-120-XX-12/24 | 5mm | 2835 | 3000-12500K | 120 | 12/24 | 8 | 800 | 80 | 5 | 10 |
RL-08-2835-60-XX-12/24 | 8mm | 2835 | 3000-12500K | 60 | 12/24 | 6 | 600 | 80 | 5 | 10 |
RL-08-2835-120-XX-12/24 | 8mm | 2835 | 3000-12500K | 120 | 12/24 | 9 | 900 | 80 | 5 | 10 |
RL-08-2835-144-XX-12 | 8mm | 2835 | 3000-12500K | 144 | 12 | 10 | 1000 | 80 | 5 | 10 |
RL-08-2835-120-XX-12-SS | 8mm | 2835 | 3000-12500K | 120 | 12 | 10 | 1000 | 80 | 5 | 10 |
RL-10-2835-120-XX-24 | 10mm | 2835 | 3000-12500K | 120 | 12/24 | 12 | 1200 | 80 | 5 | 5 |
RL-10-2835-180-XX-24 | 10mm | 2835 | 3000-12500K | 180 | 24 | 16 | 1600 | 80 | 5 | 5 |
RL-10-2835-240-XX-24 | 10mm | 2835 | 3000-12500K | 240 | 24 | 16 | 1600 | 80 | 5 | 5 |
RL-10-5050-30-XX-12 | 10mm | 5050 | 3000-12500K | 30 | 12 | 7.2 | 550 | 80 | 5 | 5 |
RL-10-5050-60-XX-12 | 10mm | 5050 | 3000-12500K | 60 | 12 | 12 | 1100 | 80 | 5 | 5 |
RL-08-2835-60-XX-12/24 | 8mm | 2835 | 3000-12500K | 60 | 12/24 | 6 | 600 | 80 | 5 | 10 |
RL-08-2835-120-XX-12/24 | 8mm | 2835 | 3000-12500K | 120 | 12/24 | 9 | 900 | 80 | 5 | 10 |
RL-10-5050-60-XX-12 | 10mm | 5050 | 3000-12500K | 60 | 12 | 12 | 1100 | 80 | 5 | 5 |
Application:

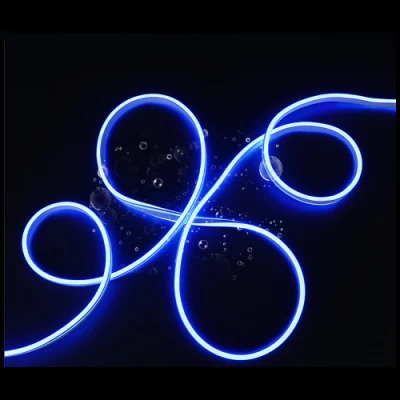

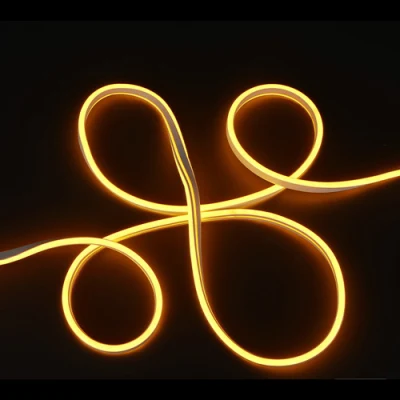

Neon Sign LED Strips can makes color to your life! We produce it with durable, waterproof silicone materials which makes it widely used for both indoor or outdoor.
Neon Sign LED Strips is perfect for walkways/ Outdoor / Indoor / Corridor / KTV / Ceiling / Hotel / Advertising/ Chaneel letter
Feature:
The neon sign LED strips can be cut, easily bent, and marked accurately.
neon sign LED strips is very easy to shape a variety of curves, letters, signs, patterns, patterns, etc., safer, easier and faster
neon sign LED strips are shatproof and absolutely safe for use indoors and outdoors.
Low voltage, low energy consumption for use
The brightness is uniform
neon sign LED strips provides roll cartons, greatly reducing size and weight, thereby increasing ease of shipping.
Installation:
It's easy to install the Neon Sign LED Strips , it is cliped into the aluminum profile, or bendable channel and connect to the power adapter.
§ LED neon strip is widely used in indoor or outdoor decoration lighting, basic lighiting or ambient lighting
§ It can also be good lighting source for signage and advertising due to its flexible and bendable characters
§ Please note all the installation would be conducted by experienced or technician, especially the high volt strip.
§ High power output or lumen don't means high quality. We should consider its light decay, heat dissipation,and chips life span.... our engineer just give you the right LED neon strip under scientific design assure 3years or 5years warranty. However we can also supply some short-term use strip which for holiday decoration with 1years warranty
§ No matter AC or DC output, all the strips can work only connect with right power supply or adaptor. Please refer to our sales or our accessories link
Workshop
FAQ
1: What's the MOQ?
For the LED light, the order is range from 500-5000pcs just based on total value.
For the cabinet , 1 cubic meter is needed to get economic sea freight.
2:What's your service?
We can provide integrated service including the chosen of LED lights, power supply and aluminum profile matched solution, as well as related cabinet, wall panel. You can even DIY the simple decoration for your house or store.
3:How about the shipment?
We can help you do the partial mixed loading in the case of several goods. Save your time and cost.
§ We are manufacturer of LED strip, LED module and LED rigid bar used in signage lighting or decoration lighting
§ We have full lighting decor materials supply including LED lights,aluminum profiles as well as necessary accessories.
§ We have excellent supplier can provide various showcase or cabinet to meet your signage or decoration needs.
§ What we focus on is help you save time ,energy and labour cost. We can do most of the work for you!
