Basic Info.
Model NO.
SFW-1500A-12V
Voltage
12V
Certification
CE, RoHS, CCC, ISO9001
Usage
Parking Lot, Garden, Public Areas Lighting
Lamp Lumen
1500-1800lm
Transport Package
Customary Carton/OEM Acceptable
Specification
820*285*240mm
Trademark
ESAVIOR / OEM
Origin
Guangzhou, China
HS Code
9405409000
Production Capacity
10000 Piece/ Per Month
Product Description

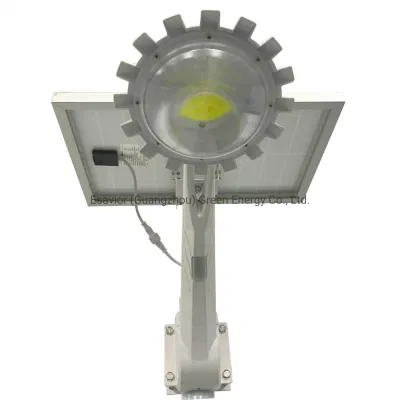

LED SOLAR GARDEN/ WALL LIGHTS
Using the latest Solar and LED technologies, our powerful LED Solar Garden/Wall light offers exceptional lighting with substantial energy savings, reduced maintenance costs and carbon emissions. Ideal for lining pathways and accenting garden features, once installed the lights charge up during the day and light up automatically at night for all night over or your requiredhours.
KEY FEATURES & ADVANTAGES
MAIN APPLICATIONS
WHY ESAVIOR?
1. 10 years' experience in with global successful project reference on the Solar Lighting field.
2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.
3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.
4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.
5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.
Thank you for your attention! Welcome to send us inquiry for more information to open new business!
Using the latest Solar and LED technologies, our powerful LED Solar Garden/Wall light offers exceptional lighting with substantial energy savings, reduced maintenance costs and carbon emissions. Ideal for lining pathways and accenting garden features, once installed the lights charge up during the day and light up automatically at night for all night over or your requiredhours.
KEY FEATURES & ADVANTAGES
18,00 LM max lamp lumen high brightness
100,000+ Hours long LED lifespan, with professional heat dissipation design
25 Years long product lifespan
3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
99.9% MPPT solar charge efficiency
IP68 rated controller vs. IP66 rated electrical compartment
5+ Days cloudy/rainy days autonomy
Flexible & Customized Working Modes with timer and motion sensor by programming
Adaptable Brackets for either post or wall mounting.
MAIN APPLICATIONS
•Resort, villa and house garden
•Gate post
•Security areas
•Park Lot
•Public spaces
•Exterior retail, commercial, hotel and leisure environments
| SUNFLOWER A-12V | MODEL NO. SFW-1500A-12V | |||

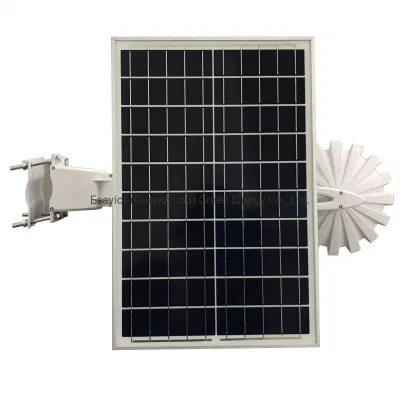

| Solar Panel | Power | 18V/30Wp (Monocrystalline PV) | ||
| Life-span | 25 years | |||
| Batteries | Capacity/Type | 12.8V/12AH (153.60WH) / LiFePO4 Lithium | ||
| Life-span | 8+ years (3,000 circles @ 60% DoD) | |||
| Controller | Type | MPPT / Waterproof class: IP68 | ||
| Sensor | PIR Motion Sensor (Timing as optional) | |||
| LED Light Source | Rated Power | 15W (15W COBx1 module) | ||
| LED Brand | OSRAM COB (LED Lumen: 180lm/W) | |||
| Lumens(LM) | 1500-1800lm | |||
| Life-span | 100,000 hours | |||
| Viewing Angle | 360° uniform light intensity distribution | |||
| Full Charge Time | By Solar | 5 hours (STC: 1000W/m2, 25ºC ) | ||
| Discharge Time | Dim Mode | >70 hours | ||
| Bright Mode | >14 hours | |||
| Working Temp. | -30ºC~+80ºC | |||
| Color Temp. | Daylight White 6000K (full color temp. range 2700~6500K available) | |||
| Mounting Height/Brackets | 3~5 m/ Clamp Bracket adabptable for pole or wall mounting | |||
| Space Between Lights | 12~15m | |||
| Materials | aluminium alloy | |||
| Certificate | CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001 | |||
| Warranty | 3 years | |||
WHY ESAVIOR?
1. 10 years' experience in with global successful project reference on the Solar Lighting field.
2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.
3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.
4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.
5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.
Thank you for your attention! Welcome to send us inquiry for more information to open new business!
