Product Description

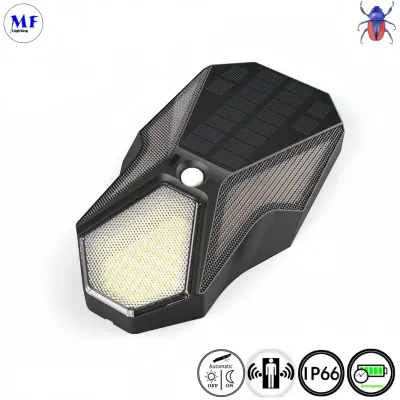

This product is our original design patented products, to provide users with high quality integratedsolar photovoltaic wall lamps, support the application of CE,ROSH and other internationalcertification.
"No wiring, easy installation", "high charging efciency", "strong battery life" and "richfunctions" mainly show the atmosphere, and scene lighting two kinds oflighting modes, the maincharacteristics are small size, fast charging, high brightness, long battery life, the main advantagesof beautiful appearance.
The lamp body is equipped with a large capacity of 18650 3.7V 1800mAhlithium battery, relying on solar panels to absorb solar energy into electricity storage in the electricfield lamp power supply, the table provides power supply to solar lamps, this product is widely usedin courtyards, walkways, farms and parks and other outdoor atmosphere and lighting use
The product appearance is designed by the company's product visual appearance team andis the company's patented product.
The product design concept is derived from the future industrial visual style design, inspireoby the science fiction character alien head image design, breaking through the traditionaappearance design style of outdoor lighting products, creating unigue visual differences andexperiences for your product line or brand to create greater value differences.
Sub-light ambient light The main light illuminates Full life lights

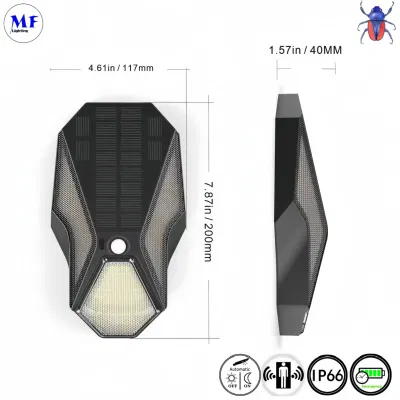

| Lamp body material | Lampshade material | Light source material | Lamp body size | product weight |
| ABS | Polycarbonate PC | Aluminum substrate | 200*117*40mm | 120g |
| Ahotovoltaic panel | Battery capacity | Discharge current | Lamp bead amount | Luminous flux |
| PET high turn single crystal 5V/150MA16W | Lithium iron phosphate 1865037V 1800mAh | 0.4A | 2835 64+23*2 | 120lm |
| Waterproof rating | Color temperature of main lamp | Secondary lamp color temperature | Main lamp power | Sublamp power |
| lp65 | White light 6500K | Warm light 3500K | 2.0W | 0.8W |
| Body sensor | Continuation ofthe journey | lumination area |
Solar panelmodule performance:
The battery adopts a single crystal battery with a high conversion efficiency of more than 20% to produce a ealantmaterial with good adhesion to the bottom plate, and the good electrical properties and sealing properties makethe components can be applied to outdoor work for a long time. Each component has undergone strict inspectionand performance testing before leaving the factory.
Standard test conditions: Light intensity 38000LUX, Spectrum AM1.5,Temperature 25ºC (outdoorlight intensity 40000LUX)
Electrical performance test: Battery temperature: 25ºC+2ºC Irradiance 38000LUX spectral distribution AM1.5
Thermal cycle test:Temperature: -40ºC-+ 85ºC Wet heat test: 85%RH
Peak power(Pmax): 0.75W Operating voltage(Vmp): 5V
Operating current(lmp): 150MA Open Circuit Voltage e(Voc)
Short circuit current(lsc): 170MA
Click ON to start the default mode. The main on is 100%, and the secondaryon is 50%. After 30 seconds, no action is taken lnduction, the main light is off,the secondary light remains 50% constant brightness,lasting 30 seconds,noaction induction, the secondary light from dynamic drop bottom to 20%, whenthere is motion sensing, repeat the above function.Double-click the ON button to start the power saving mode, the main light is100%, and the secondary light is 20%. After 30 seconds, there is no action duringinduction, the main light is turned off, and the auxiliary light remains 20%unchanged. After 30 seconds, when there is no action induction, the whole lightis turned off. When there is inductive action, repeat the above function.
Functional health
A Main light control key: The brightness of the main light (the auxiliary light is off)is 100%, and the main light will be on when there is no action induction for 30seconds the degree is reduced to 50%, and after continuing to hold for 30 secondswhen there is no action induction, the main light automatically drops to 20%. motilityForinduction,repeat the above functions.B Auxiliary light control key: The brightness of the auxiliary light (the main light is offis 100%, and the main light is on when there is no action induction for 30 seconds thedegree is reduced to 50%, and after continuing to hold for 30 seconds, when there isno action induction, the main light automatically drops to 20%. Motility for inductionrepeatthe above functions.
Solar wall lights are outdoor lights that use solar power to provide illumination. They have various applications such as lighting pathways, enhancing security, highlighting features, illuminating gardens, and more. They are easy to install, require little maintenance, and are eco-friendly and cost-effective
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products.
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
