Basic Info.
Model NO.
CL-SSL0175-40W
Power
40W
Technics
Electroplating
Illumination Time
12h
Cell Type
LiFePO4
Charging Time (H)
6-8 Hours
Usage
Garden, Street
IP Rating
IP65
Certification
CE, RoHS
Voltage
12.8V
With Light Source
With Light Source
Material
Die-Casting Aluminum Alloy
Solar Panel
Mono-Crystalline 18V 30W
Battery
LiFePO4 12.8V 12ah
Battery Lifespan
>5 Years, Brand New A1 Type LiFePO4 Battery.
Working Temp.
-20~+60 Degree
LED Chips
CREE 3030 60PCS
Other LED Chips
Lumi-LEDs Luxeon/0sram/Bridgelux/Epistar 3030
Beam Angle
150*70
Color Rending Index
Ra80
Working Way
Time Controller, Gradually Dimming
Water Proof
IP65
Installation Height
5-6m
Lifespan
Over 5 Years
Lead Time
15-20 Working Days
Transport Package
Carton Box Packing with Foam
Specification
600*260*100mm
Trademark
Klover
Origin
Zhongshan, Guangdong, China
HS Code
9405409000
Production Capacity
10000/Month
Product Description

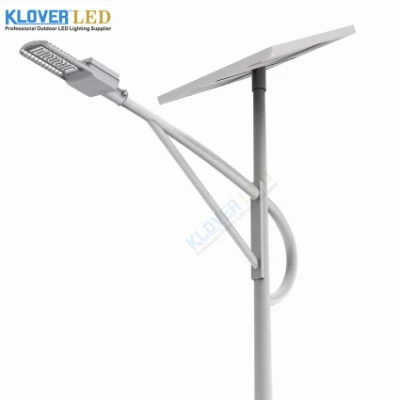

Features Super bright seperated 40W solar led street light:
APMS system, Integrated smart IC, 365 days non-stop lighting in the night.
1. Aluminum housing lamp body, extra strong.
2. LM-80 listed Bridgelux 3030 LED chips, high lumen and stable performance..
3. Brand new A1 type LiFePo4 battery, Dod>80% after 2000 cycles, not recycled battery.
4. Controller integrated in to LED PCB, stable quality and competitive price..
5. Luminaire efficiency: 150lm/w
6. With optical lens, 150*75 degree, bat wing light transmission
7. Equipped with time controller for more energy saving, enlong lighting time
8. Charging time 6-8hours, discharge time over 24 hours.
9. Super bright, much more LED chips than rated power to achieve high lumen output.
Nowadays too many suppliers are using car recycled battery as power bank, but we are using brand new LiFePo4 battery to guarantee our quality.
3 years warranty, but actual running at least 5 years.
Specification
| Product Name | 20W solar street light | 30W solar street light | 40W solar street light | 50W solar street light |
| Model Number | CL-SSL0175-20W | CL-SSL0175-30W | CL-SSL0175-40W | CL-SSL0175-50W |
| Rated Power | 20W | 30W | 40W | 50W |
| Product Size(mm) | 500*210*85 | 500*210*85 | 600*260*100 | 600*260*100 |
| Beam Angle | 70*150 degree, bat wing light transmission. | |||
| LED Controller | Integrated controller on the LED PCB | |||
| LED Chips | Bridgelux 3030 | |||
| LED Quantity | 60pcs 3030 | 60pcs 3030 | 120pcs 3030 | 120pcs 3030 |
| Luminaire Effciency | 130-140lm/w | |||
| Solar panel | Mono-crystalline 6V 50W | Mono-crystalline 6V 60W | Mono-crystalline 6V 70W | Mono-crystalline 6V 80W |
| Battery | LiFePo4 3.2V 40Ah | LiFePo4 3.2V 50Ah | LiFePo4 3.2V 60Ah | LiFePo4 3.2V 70Ah |
| Charging time | 6-8 hours | |||
| Discharge time | >24 hours | |||
| Installation height | 4-5m | 5-6m | 6-7m | 7-8m |
| Light Color | Warm White/Natural White/Cool White | |||
| Color Temperature | 6000-6500K | |||
| CRI | Ra>70 | |||
| UGR | <19 | |||
| IP Rating | IP65 | |||
| Working Temp | -30ºC To 60ºC | |||
| Material | aluminum alloy | |||
| Lifespan | >50,000 hours | |||
| Warranty | 3 years | |||
FAQ
Q1. Can I have a sample order for solar LED street light?
A: Yes, we welcome any sample orders, can mix different models to order sample.Can test as long time as you wish, 1 year to 5 years no problem, we have full confidence on our quality.
