Product Description

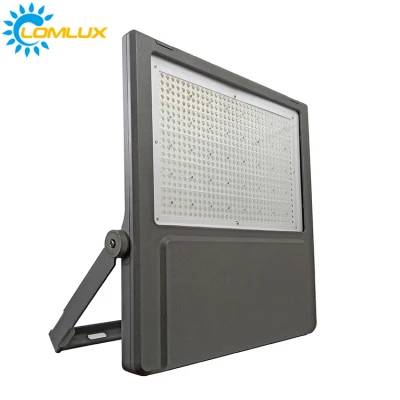

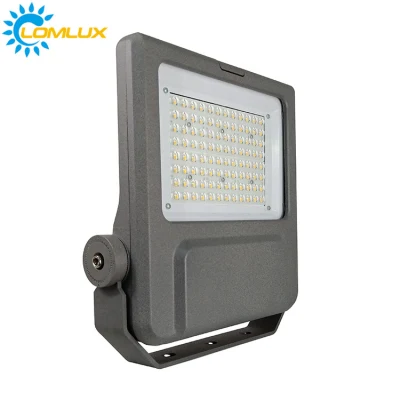

LM-FL59 hot sale led flood light 30-1000w Manufacturer
MAIN ADVANTAGES OF THE LED LUMINAIRE LM-FL59
LED flood light have a long useful life and low running costs. They are valued for their above-average durability,
high resistance to mechanical damage, environmental friendliness, very good visibility and aesthetic values.
The die-cast aluminum ensures effective heat dissipation, while maintaining high durability of the LED luminaire.
Power-coated body with a self-cleaning coating - standard colour RAL9007 - provides ideal protection against corrosion.
Street Lighting -Lomlux luminaires are available in a wide range of lens to suit different road classes.
High Power Factor >0.94 in full control range.
Protection built-in over voltage protection 10KV 20KV SPD as optional.
Savings the high efficiency LED luminaire (150lm/W) reduces electricity costs by over 50%.
Smart Lighting - 3/5/7Pin NEMA to support Photocell, 1-10V / PMW / DALI Dimming and smart city lighting systems.
Certs - ENEC+, ENEC, CB, SAA, CE, EMC, RoHS, IP66, IK09, LM79, TM21 etc.
5-7 Years warranty on the luminaire and a post warranty service.
| Model | LM-FL59-G03 | LM-FL59-G06 | LM-FL59-G012 | LM-FL59-G24 | LM-FL59-G40 | LM-FL59-G60 | ||||||
| Size | 256*261*78mm | 286*316*78mm | 330*414*78mm | 431*525*79mm | 567*643*79mm | 668*724*79mm | ||||||
| Power | 30-60W | 60-100W | 100-200W | 200-400W | 400-600w | 600-1000w | ||||||
| Luminous Flux | 135-155lm/W | |||||||||||
| Material | Aluminum, LED Chip, Lens, Toughened Glass, Screw | |||||||||||
| LED Chip | 3030SMD, 5050SMD | |||||||||||
| Optic Lens | 20, 30, 60, 90, 120, Type I, II, III, IV, V options | |||||||||||
| Driver | Meanwell, Phlips, Sosen, Inventronics or specified brand | |||||||||||
| CCT | 3000K, 4000K, 5000, 5700K, 6500K | |||||||||||
| IP Level | IP66 | |||||||||||
| Certifications | ENEC CB SAA CE RoHS EMC IP66 IK09 etc. | |||||||||||
| Warranty | 3-5 years | |||||||||||
Luminous source, providing excellent lumen
output, long-lasting stability and splendid
sight. The efficiency of 5050 chips
is more than 175 lm/w.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.
