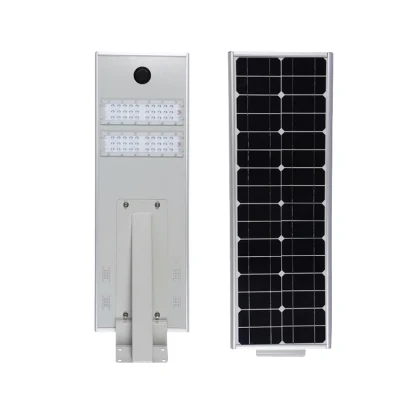

Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights

After-sales Service: Free Replacement Parts
Warranty: 5 Years
Light Source: LED Lamp
Lamp Body Material: Aluminum
Light Type: Solar
Color Temperature: Pure White

Products Details

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Our Project
  • Company Profile
  • Certifications
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
YS-FL-60W
Power
60W
Technics
Painted Matte
Illumination Time
6-8 Hours
Cell Type
LiFePO4 Battery
Charging Time (H)
6
Usage
Street
IP Rating
IP65
Certification
CE, RoHS
Voltage
220V
With Light Source
With Light Source
LED Chip
SMD3030
Customization
Available
Ik Glass
09
Design
Unique Designed
Use
Light Industry Daily Use
Battery
LiFePO4 12.8V 30ah
Transport Package
Carton Box
Specification
Galvanized steel light pole
Trademark
Yistar
Origin
China
HS Code
9405410000
Production Capacity
50000PCS/Month

Product Description

Product Description

1. Designed by a professional industrial design team, integrating solar panels, led sources, controller, battery, human body induction, and housing.
2. Adjustable angle mounting bracket, suitable for a variety of modeling lamp pole installation methods.
3. Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules.
4. Intelligent charging and discharging management, soft and hard double protection of charging and discharging and intelligent equalization technology, battery cycles more than 2000 times.
5. Smart remote control, equipped with drone remote control, ultra-long remote control distance of 30 meters, can pass through obstacles, and can set four lighting modes at will.
6. High-efficiency LED chips can reach 220LM/W, which is more than twice the average brightness of ordinary LED light sources, with a luminous angle of 140 degrees, and a wider irradiation area.
7. The whole lamp adopts modular minimalist design, easy disassembly, installation, and transportation.

Product Parameters
Model No. Mono Solar       Panel LED LifePO4 Battery Working time Charging time CCT Mounting Caliber Body Sensor Mounting Height
YS-FL-20W 18V 35W 3030/50PCS 3.2V  36AH 12-15hours,5-7 cloudy/rainy days 6-8hours 2700K-6500K,Ra>70 70-76mm
160°,>9m , Activated by customer's need

4-5m
5-6m
3030/100PCS
YS-FL-30W 18V 50W 3.2V 72AH
6-7m
3030/150PCS
YS-FL-40W 18V 60W 3.2V 100AH
YS-FL-60W 18V 90W 3030/200PCS 12.8V 30AH 8-9m
YS-FL-80W 18V 110W 3030/250PCS 12.8V 48AH 9-10m
YS-FL-100W 18V 120W 3030/300PCS
12.8V 60AH
10-12m
YS-FL-120W 18V 150W 3030/350PCS 12.8V 72AH 12-15m
Battery Power Indicators:100%-75%-50%-25%                                                   Fault indicator: RED/BLUE/GREEN
IP Rating/IK Class:IP66/IK09                                                                                Warranty: 3 years

Detailed Photos
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
Our Project
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights



Company Profile

Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street LightsYistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights

Certifications

Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights

Packaging & Shipping

Yistar LED Solar Panel Battery The Pole Powered Integrated All in One Post Garden Road Lawn Street Lights
